Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight |
1238 g |

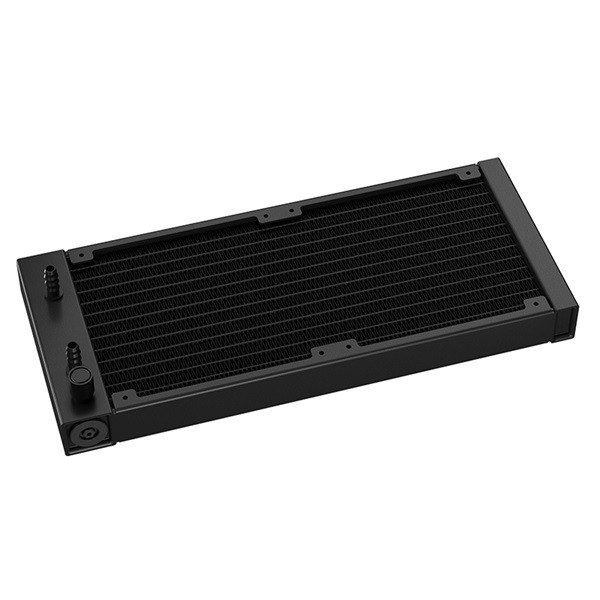

Radiator Dimensions |
282×120×27 mm(L×W×H) |
Radiator Material |
Aluminum |
Tube length |
410 mm(L×W×H) |

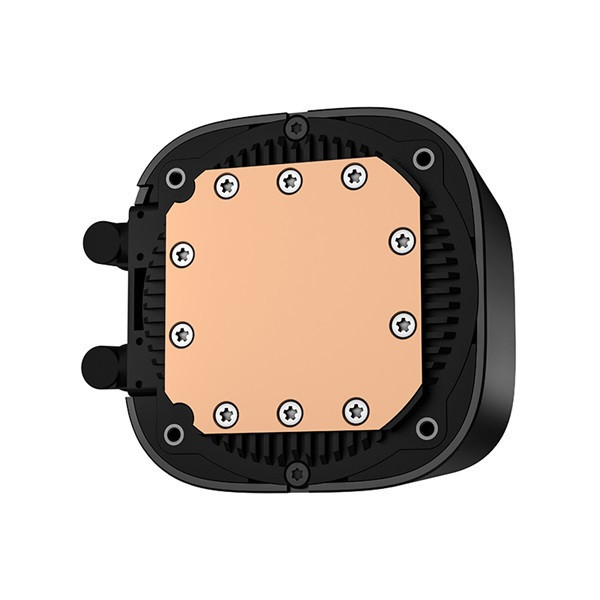

Pump Dimensions |
91×80×52 mm(L×W×H) |
Pump Speed |
2400 RPM±10% |
Pump Noise |
17.8 dB(A) |
Pump Connector |
3-pin |
Pump Rated Voltage |
12 VDC |
Pump Rated Current |
0.2 A |
Pump Power Consumption |
2.4 W |

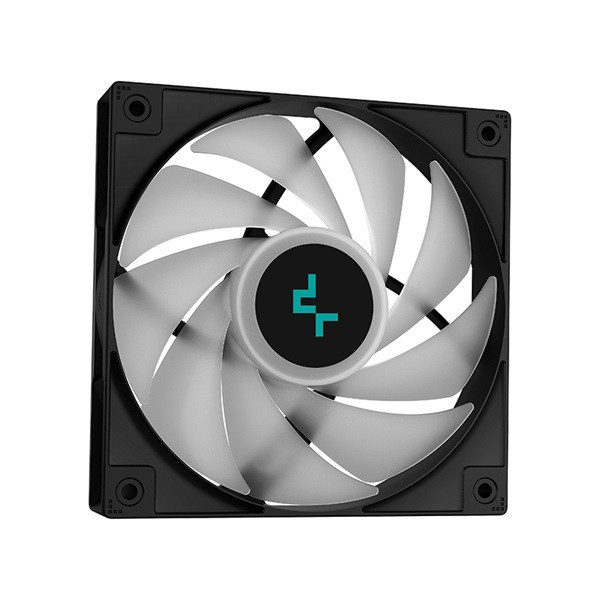

Fan Dimensions |
120×120×25 mm(L×W×H) |
Fan Speed |
500~2250RPM±10% |
Fan Airflow |
85.85 CFM |
Fan Air Pressure |
3.27 mmAq |
Fan Noise |
≤32.9 dB(A) |
Fan Connector |
4-pin PWM |
Bearing Type |
Hydro Bearing |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.25 A |
Fan Power Consumption |
3.0 W |
LED Type |
Addressable RGB LED |
LED Connector |
3-pin(+5V-D-G) |
LED Rated Voltage |
5 VDC |
LED Power Consumption |
2.25 W(PUMP)/ 2.1 W(FAN×2) |
EAN |
6933412728047 |
P/N |
R-LE520-BKAMMN-G-1 |
