Smart Home Video Kapucsengő
SPECIFICATIONS
|
|
Product Dimension
|
149x47x30 mm
|
Net Weight
|
217g
|
Power Cable Length
|
1.5m
|
Housing Material
|
ABS+PC
|
Housing Color
|
White
|
Housing Flame Retardance
|
UL94 V-0
|
Ingress Protection(IP)
|
IP65
|
Image Sensor
|
1/2.8" 3MP CMOS
|
Sensor Brand And Model
|
SMARTSENS, SC301IOT
|
Main Chipset Brand And Model
|
INGENIC, T31ZL
|
Lens Brand And Model
|
HS-Q118
|
Lens Focal Length
|
2.5mm
|
Aperture
|
F2.2
|
Power Supply
|
DC 5V1.5A, AC 8~24V
|
Working Power Consumption
|
0.75W
|
Standby Power Consumption
|
1.3mW
|
Live Stream Video Resolution
|
FHD(1536*2048) / SD(432*576)
|
Notification Image Resolution
|
SD(432*576)
|
Live Stream Effective Pixels
|
3MP
|
Optical pixel or lmage interpolation
|
Hardware straight out
|
Angle of View (H/V/D)
|
100°(Horizontal) * 135°(Vertical) * 170°(Diagonal)
|
Microphone Sensitive
|
-38dB
|
Noise Reduction
|
3D NR
|
Audio Input
|
Built-in 38db Mic
|
Audio Output
|
Built-in 8ohms Speaker
|
Audio Compression
|
G711U
|
Video Compression
|
H.265 / H.264
|
Frame Rate
|
Main Stream (HD) : 1Mbps; Substream (SD) : 384Kbps
|
IR CUT
|
Support
|
IR Distance
|
5m
|
Number Of Infrared Lamp Beads
|
4pcs
|
Night Vision Mode
|
Black & White mode
|
Wireless Standard
|
Wi-Fi IEEE 802.11 b/g/n
|
Wireless Frequency
|
2412 MHz ~ 2472 MHz
|
Wireless Encryption Protocol
|
WEP/WPA-PSK/WPA2-PSK
|
Working Temperature
|
-20°C - +50°C
|
Working Humidity
|
10~95%RH (no condensation)
|

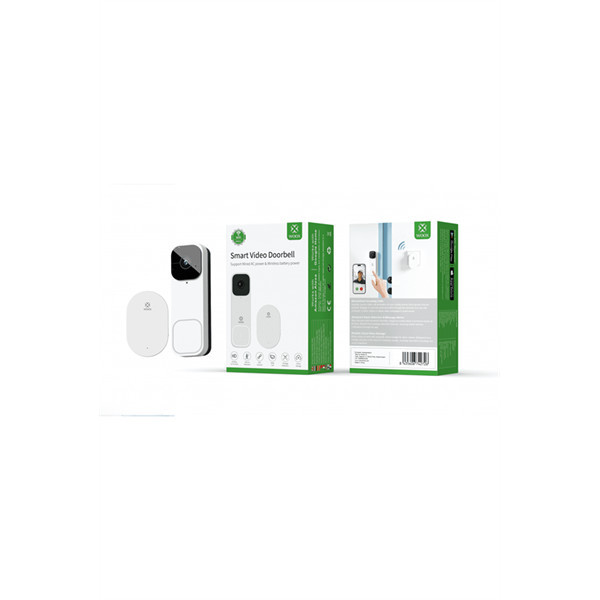

Woox smart home video kapucsengő - r4331 (3 féle tápellátás, kétirányú hangkapcsolat, adattárolás)
|
