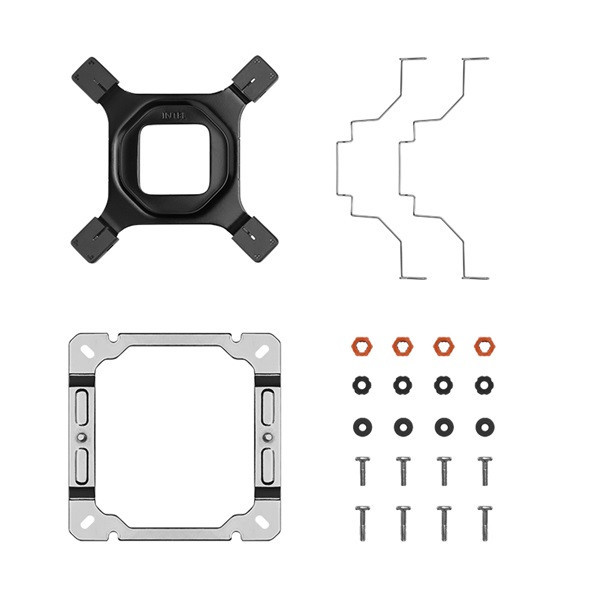

Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions |
126×97×156 mm(L×W×H) |
Heatsink Dimensions |
120×60×152 mm(L×W×H) |
Net Weight |
695 g |

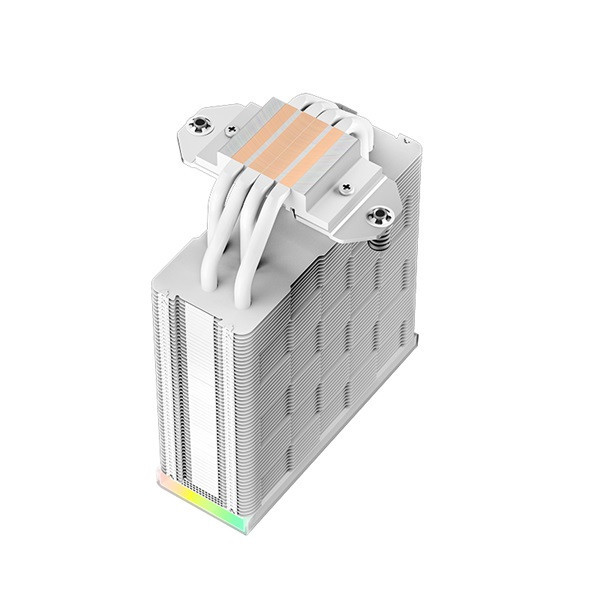

Heatpipe |
O6 mm×4 pcs |

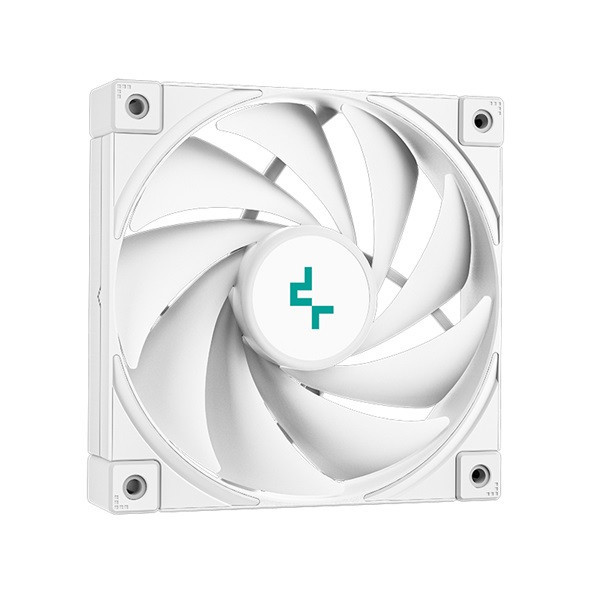

Fan Dimensions |
120×120×25 mm(L×W×H) |
Fan Speed |
500~1850 RPM±10% |
Fan Airflow |
68.99 CFM |
Fan Air Pressure |
2.19 mmAq |
Fan Noise |
≤28 dB(A) |
Fan Connector |
4-pin PWM |
Bearing Type |
Fluid Dynamic Bearing |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.12 A |
Fan Power Consumption |
1.44 W |
LED Type |
Addressable RGB LED |
LED Connector |
3-pin(+5V-D-G) and 9-pin USB 2.0 |
LED Rated Voltage |
5 VDC |
LED Power Consumption |
3 W |
