Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec

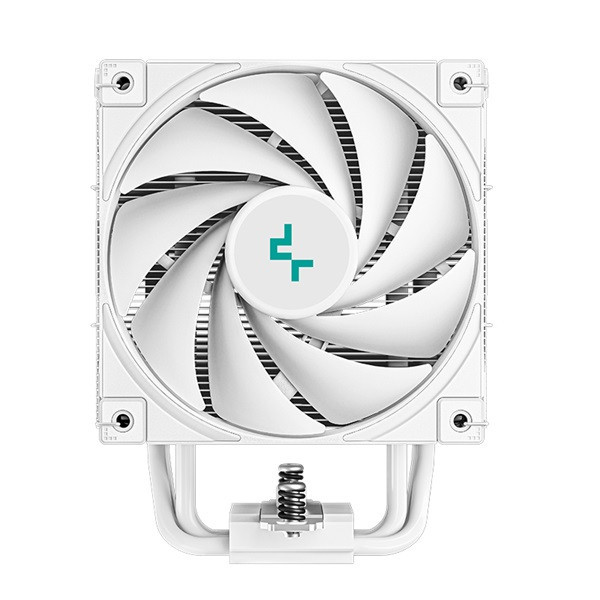

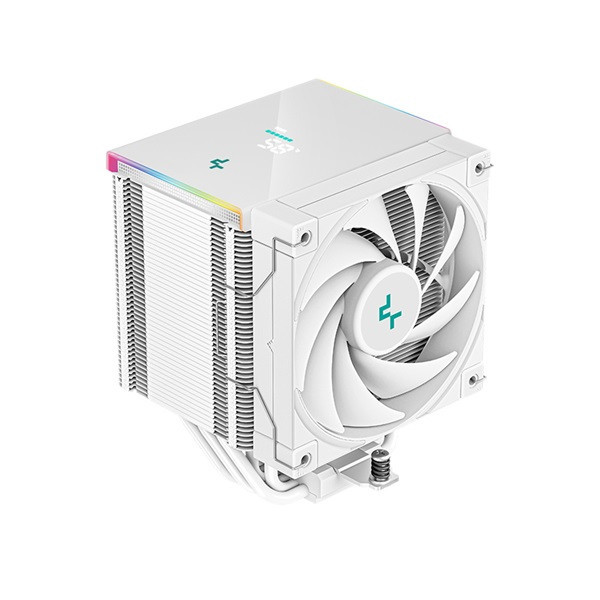

Product Dimensions |
127×117×160 mm(L×W×H) |

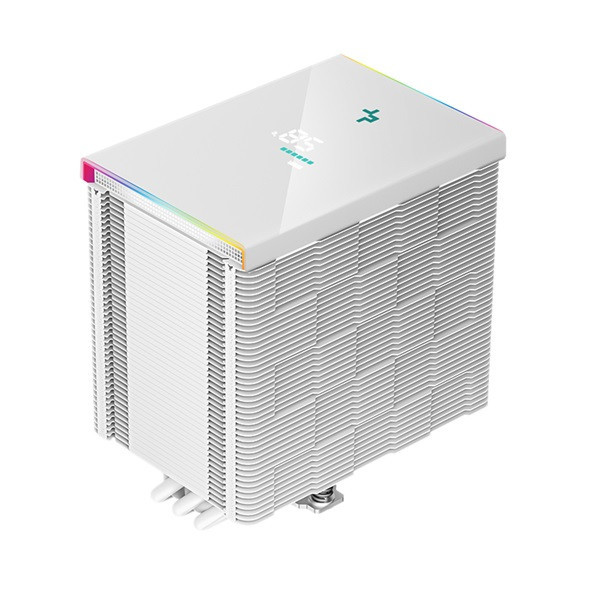

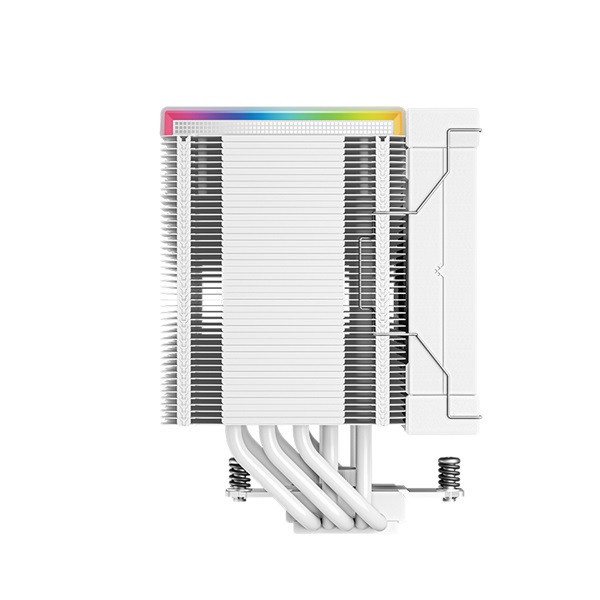

Heatsink Dimensions |
127×92×156 mm(L×W×H) |
Net Weight |
1291 g |

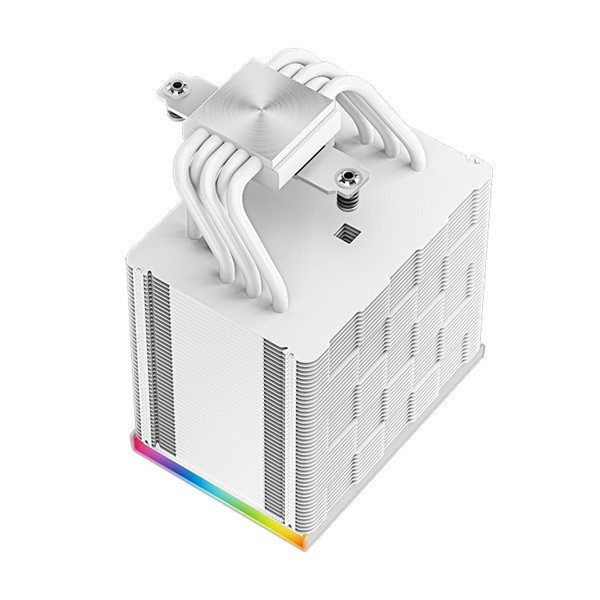

Heatpipe |
O6 mm×5 pcs |

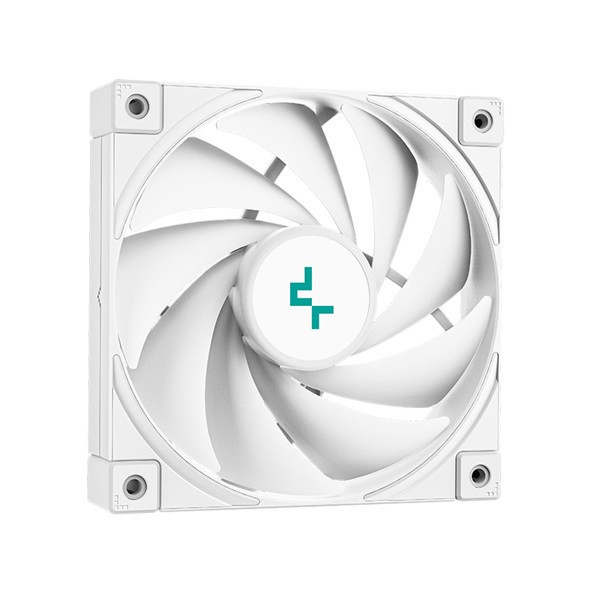

Fan Dimensions |
120×120×25 mm(L×W×H) |
Fan Speed |
500~1850 RPM±10% |
Fan Airflow |
68.99 CFM |
Fan Air Pressure |
2.19 mmAq |
Fan Noise |
≤28 dB(A) |
Fan Speed (with LSP) |
500~1550 RPM±10% |
Fan Airflow (with LSP) |
52.24 CFM |
Fan Air Pressure (with LSP) |
1.2 mmAq |
Fan Noise (with LSP) |
≤25.9 dB(A) |
Fan Connector |
4-pin PWM |
Bearing Type |
Fluid Dynamic Bearing |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.12 A |
Fan Power Consumption |
1.44 W |
LED Type |
Addressable RGB LED |
LED Connector |
3-pin(+5V-D-G) and 9-pin USB 2.0 |
LED Rated Voltage |
5 VDC |
LED Power Consumption |
4.5 W |
EAN |
6933412728269 |
P/N |
R-AK500-BKADMN-G |
