Video and Audio |
IP Video Input |
32-Channel |
Incoming Bandwidth |
320 Mbps |
Outgoing Bandwidth |
320 Mbps |
HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Video Output Mode |
HDMI/VGA Independent Output |
Multi-View Display |
1/4/6/8/9/16/25/32/36 |
DECODING |
Audio Compression |
G.711A/G.711U/G.726 |
Decoding Format |
H.265+/H.265/ H.264+/H.264 |
Video Compression |
H.265+/H.265/ H.264+/H.264 |
Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Live View/Playback Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
2CIF/CIF/QCIF |
Synchronous Playback |
16-Channel |
Capability |
16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP |
(30 fps) |
Record Management |
Record Mode |
• Manual Recording |
• Scheduling Recording |
• Motion Detection Recording |
Playback Mode |
• Instant Playback |
• Regular Playback |
• Tag Playback |
• Event Playback |
Backup Mode |
• Regular Backup |
• Video Clip Backup |
Playback Function |
• Play |
• Pause |
• Stop |
• Fast Forward |
• Fast Backward |
• Play By Frame |
• Full Screen |
• Video Clip |
• Export Clip |
• Digital Zoom |
• Lock Recording |

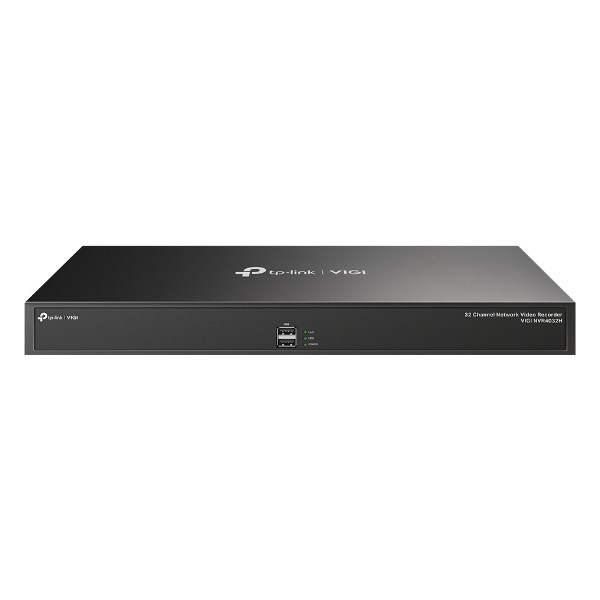

Tp-link nvr rögzítő - nvr4032h (32 csatorna; h265+, 8mp, 320mbps, hdmi, vga, usb, 4x sata(max10tb), audio)
|
