Kamera |
Képérzékelő |
1/2.7” Progressive Scan CMOS |
Shutter Speed |
1/3 to 1/10000 s |
Slow Shutter |
Yes |
Min. szükséges megvilágítás |
0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism |
IR Cut Filter |
Day/Night Switch |
Unified/ Scheduled/ Auto |
LENS |
Type |
Fixed Focal Lens |
Focal Length |
2.8/4 mm |
Aperture |
F1.6 |
FOV |
• 2.8 mm: |
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
|
• 4 mm: |
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
Lens Mount |
M12*P 0.5 |
DORI Distance |
• 2.8 mm |
Detect: 85 m (278 ft) |
Observe: 35 m (116 ft) |
Recognize: 17 m (56 ft) |
Identify: 8 m (28 ft) |
|
• 4 mm |
Detect: 107 m (350 ft) |
Observe: 44 m (146 ft) |
Recognize: 21 m (70 ft) |
Identify: 11 m (35 ft) |
Angle Adjustment (Manual) |
Range |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR |
IR LED |
• Quantity: 2 |
• Range: 30m |
• Wavelength: 850nm |
White LED |
• Quantity: 2 |
• Range: 30m |
Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
VIDEO |
Max. Resolution |
3840 X 2160 |
Main Stream |
• Frame Rate: |
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |

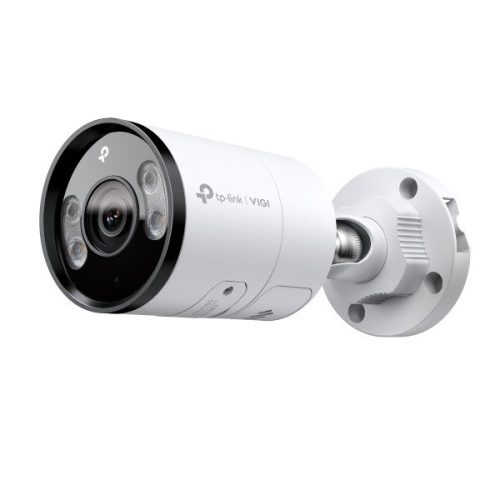

Tp-link ip csőkamera - c385 (fullcolor, 8mp, 4mm, h265+, ip67, led30m, ir30m, poe/12vdc, sd, mikrofon, hangszóró)
|
